Model Q32 is an industry standard
design for general monitoring of
liquid levels industrial processes and tanks for high pressure applications. These incorporate bracing
cross members that prevent bulging of liquid chambers, and enable higher pressures to be attained.
Unlike our proprietary sidewall sealed designs, these seal on the face of the glass
with a gasket like other common level gauge designs.
These units are exactly equivalent to products from other manufacturers, and can be substituted
in existing installations. Substitutions for transparent
gauge types are shown below. For reflex gauges, "T" is replaced by "R" in the designations.
Sizes |
No. of Sections | Size | Model Q32 | Jerguson™ | Penberthy™ | Quest-Tec™ |
1 | 1 | 1132TT | 11T32 | - | 11TH |
1 | 2 | 1232TT | 12T32 | - | 21TH |
1 | 3 | 1332TT | 13T32 | - | 31TH |
1 | 4 | 1432TT | 14T32 | 1TH4 | 41TH |
1 | 5 | 1532TT | 15T32 | 1TH5 | 51TH |
1 | 6 | 1632TT | 16T32 | 1TH6 | 61TH |
1 | 7 | 1732TT | 17T32 | 1TH7 | 71TH |
1 | 8 | 1832TT | 18T32 | 1TH8 | 81TH |
1 | 9 | 1932TT | 19T32 | 1TH9 | 91TH |
2 | 3 | 2332TT | 23T32 | - | 32TH |
2 | 4 | 2432TT | 24T32 | 2TH4 | 42TH |
2 | 5 | 2532TT | 25T32 | 2TH5 | 52TH |
2 | 6 | 2632TT | 26T32 | 2TH6 | 62TH |
2 | 7 | 2732TT | 27T32 | 2TH7 | 72TH |
2 | 8 | 2832TT | 28T32 | 2TH8 | 82TH |
2 | 9 | 2932TT | 29T32 | 2TH9 | 92TH |
3 | 6 | 3632TT | 36T32 | 3TH6 | 63TH |
3 | 7 | 3732TT | 37T32 | 3TH7 | 73TH |
3 | 8 | 3832TT | 38T32 | 3TH8 | 83TH |
3 | 9 | 3932TT | 39T32 | 3TH9 | 93TH |
4 | 7 | 4732TT | 47T32 | 4TH7 | 74TH |
4 | 8 | 4832TT | 48T32 | 4TH8 | 84TH |
4 | 9 | 4932TT | 49T32 | 4TH9 | 94TH |
Longer products are available on request.
Pressure/Temperature Ratings
(Flanged gauges take flange rating when lower)
TRANSPARENT GAGE |
Temperature |
Glass Size 1 thru 9 |
℉ |
℃ |
100 |
38 |
3000 |
200 |
93 |
2920 |
300 |
149 |
2850 |
400 |
204 |
2780 |
500 |
260 |
2600 |
600 |
316 |
2310 |
700 |
371 |
2020 |
800 |
427 |
1730 |
SATURATED STEAM RATING 750 WSP |
REFLEX GAGE |
Temperature |
Glass Size 1 thru 9 |
℉ |
℃ |
100 |
38 |
4000 |
200 |
93 |
3890 |
300 |
149 |
3790 |
400 |
204 |
3700 |
500 |
260 |
3470 |
600 |
316 |
3080 |
700 |
371 |
2690 |
800 |
427 |
2300 |
SATURATED STEAM RATING 300 WSP |
Standard construction includes a solid one-piece chamber machined from bar, forged steel covers,
tempered glass, alloy steel bolts and nuts. Recessed gasket seats prevent gasket movement.
Model Q32 gauges are available in a variety of materials to meet specific corrosive conditions.
In particular, since the only wetted metal part is the liquid chamber body, specifying 316 stainless steel
for the body is a popular and cost effective avenue for better corrosion resistance.
All standard chamber materials
(carbon and stainless steels) are NACE MR-01-75 acceptable materials. Non-frost extensions, illuminators, support

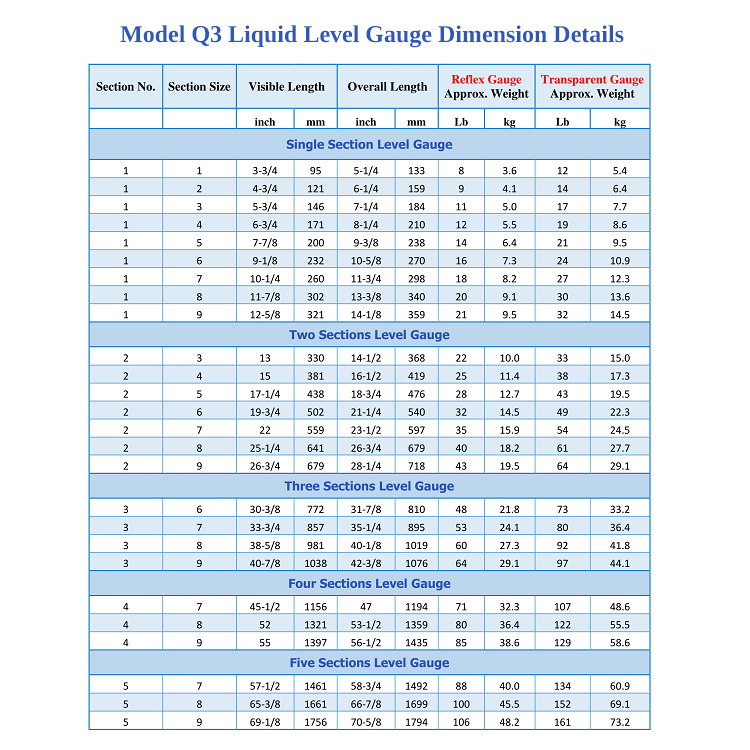

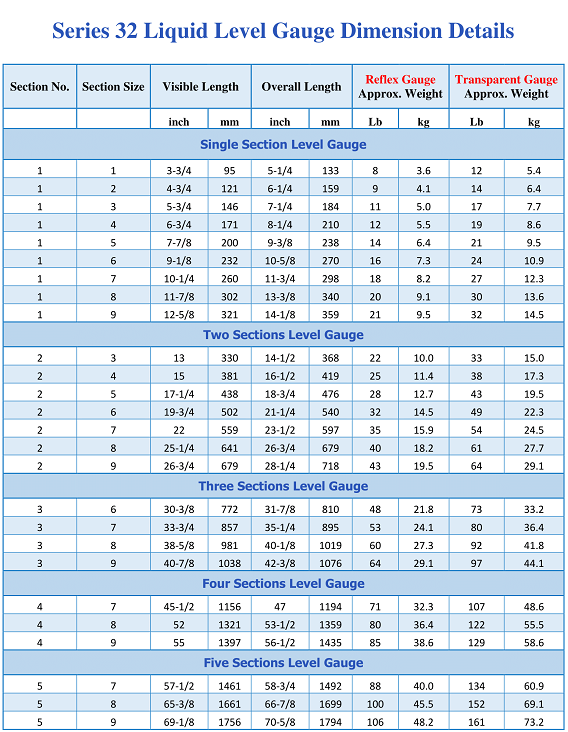

brackets, Kel-F shields, mica shields and special alloys are available. Detailed dimension, pressure, and temperature
ratings are available here.
Available Accessories
- Isolation Valves
- Side or Back Connections
- Flanged Or Socket Weld Connections
- Grafoil, Teflon, HPN Gasketing
- Mica and Kel-F Sheilds
- Drain Valves
- Non Frost Extensions
- Aluminosilicate Glass
- Heating or Cooling Tubes (Both Internal & External)
- Spring Washers
- Illuminators
- Isolation Valves
- Side or Back Connections
- Flanged Or Socket Weld Connections
- Grafoil, Teflon, HPN Gasketing
- Mica and Kel-F Sheilds
- Drain Valves
- Non Frost Extensions
- Aluminosilicate Glass
- Heating or Cooling Tubes (Both Internal & External)
- Spring Washers
- Illuminators
- SS316 Wetted and Non-Wetted Parts Covers and Bolting
- Offshore Coating Per FP-11
- Insulation Jackets
- Expansion Loops and Coils
- Scales (Stainless Steel Scales, Brass Scales, metric and imperial)
Model Q32 gauges are manufactured by Quality Machining & Metal Works, Inc.
