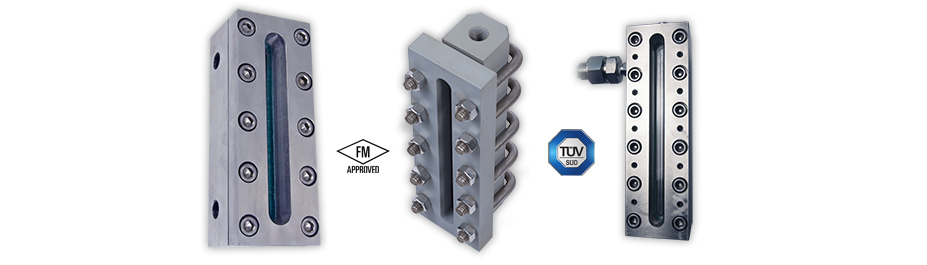

Reflex Liquid Level Gauge

Reflex Liquid Level Gauge
jQuery Slider
Photo Gallery
View Reflex Level Gauge Photos
Reflex Level Gauge Photos
View Engineering Information

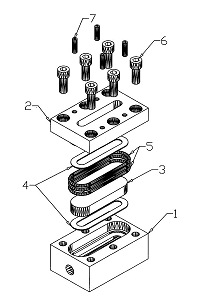

CAD Drawing

Click for larger view
Product Details
The Reflex Liquid Level gauge allows visual observation of level, color, or clarity of a liquid in a vessel or tank at a low initial cost.

This model can be arranged as either a single unit or stacked up in multiple sections to monitor any required height. Standard reflex level gauge units include 1/2" or 3/4" NPT female-end connections, and can also be furnished with other connection types (socket weld, flanged, sanitary, or as specified) as well as with various valve models upon request.

Body: 316 Stainless Steel; Carbon Steel
Retainer Caps: 316 Stainless Steel; Carbon Steel
Lens: Borosilicate (Pyrex®)— Reflex—Gauge Glass; Quartz
Lens Cushion Gaskets: Teflon®; Grafoil®; Gylon®; Blue-Gard®; etc.
O-Rings or Packing: Viton®; Teflon®; Graphite; Buna-N; Silicone; EPDM; etc.
Set Screws: 18-8 Stainless Steel; Carbon Steel SA-193*
Retainer Cap Bolts: 18-8 Stainless Steel; Carbon Steel SA-193*

*By request only

This sight glass has been certified as maintaining a Quality Assurance System in accordance with the Pressure Equipment Directive 97/23/EC (PED) Annex I, Paragraph 4.3 by the Certification Body 0036 of the TÜV Industrie Service GmbH.
