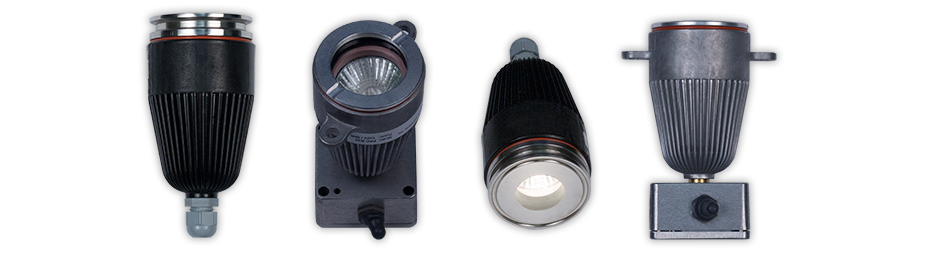

Model R50 Light

Model R50 Light
jQuery Slider
Photo Gallery
View Model R50 Light Photos
R50 Light Photos
View Engineering Information
Product Details
The hallmark of our Model R50 process light its ability to be mounted via a variety of sanitary couplings.

The face plate of the R50 is a fused-glass sanitary DuraPort sight window which is capable of direct connection to the process vessel. All light sources can operate continuously, without the need for shutoff timers or thermal cutoffs. Available lamps include 20-, 35-, and 50-watt units operating at either 12 or 120 volts. Each lamp is self-contained, with a built-in reflector.

A 21-watt high intensity discharge (HID) version is also available, with light output equivalent to a 65-watt halogen lamp. This self-contained system includes a ballast that is sealed (potted) in an enclosure (the ballast must be located within 24 inches of the illuminator). The supply voltage for the ballast is 24 VDC. A 24-volt power supply is also available from PresSure Products to power this unit, or users may furnish their own 24 VDC source.

The R50 illuminator can also be used as a stand-alone light, with a conventional glass face such as for lighting a vessel through an existing sight glass. These lights are water resistant but not explosion-proof.

Body: Aluminum
Lens Glass: DuraPort fused sight glass window with sanitary connection
