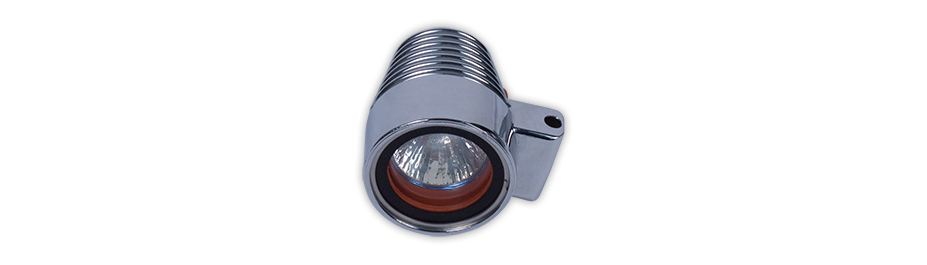

Model T50 Light

Model T50 Light
jQuery Slider
Photo Gallery
View Model T50 Light Photos
T50 Light Photos
>
View Engineering Information
Product Details
The hallmark of our Model T50 process light its versatility. It can be mounted via a variety of sanitary couplings or standard brackets.

The face plates of the T50s are special fused-glass sanitary DuraPorts capable of direct connection to the process vessel. All light sources can operate continuously, without the need for shutoff timers or thermal cutoffs. Available lamps include 20-, 35-, and 50-watt units operating at either 12 or 120 volts, and are self-contained, with a built-in reflector.

These illuminators have a bottom-mounting provision to which a bracket may be attached for surface mounting, or mounting to an existing flange. Chrome-plated units are available when appearance is important. The T50 illuminator can also be used as a stand-alone light, with a conventional glass face such as for lighting a vessel through an existing sight glass. These lights are water resistant but not explosion-proof.

Materials
Body: Aluminum
Lens Glass: DuraPort fused sight glass window with sanitary connection
