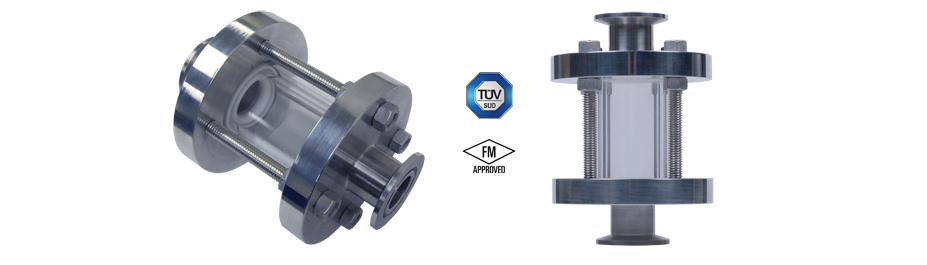

Full View Sanitary Sight Glass

Full View Sanitary Sight Glass
Full View Sight Flow Indicator
jQuery Slider
Photo Gallery
View Full View Sanitary Photos
Full View Sanitary Photos
View Engineering Information

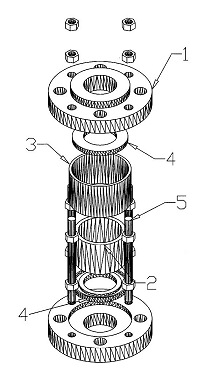

CAD Drawing

Click for larger view
Product Details
Full View Sanitary Sanitary Sight Glasses are designed for sanitary applications used in the food, dairy, and pharmaceutical industries.

These units are used to provide 360-degree viewing of material flow in a line. The unit is available in sanitary connection from 3/4" to 6" sizes, and can be supplied with a protective tubing of polycarbonate (lexan) tubing, acrylic tubing, or slotted stainless steel, depending on temperature requirements. The Sanitary Full-View Sight Flow Indicator allows observation of fluids in transit through a three-dimensional pipeline. PPC also offers process tubing made of both transparent acrylic and transparent polycarbonate if borosilicate tubing cannot be applied to the process.

Sanitary Flanges: 304L or 316L Stainless Steel
Glass: Heavy Wall Borosilicate (Pyrex) Tubing; Polycarbonate (Lexan) Tubing; Acrylic Tubing; etc.
Protective Lens Cover: Polycarbonate (Lexan) Tubing; Acrylic Tubing or Slotted Stainless Steel
Studs: 304 Stainless Steel; 18-8 Stainless Steel; Carbon Steel
Gaskets: Teflon® (Standard); Viton®; EPDM; Gore-Tex®; etc.

This sight glass has been certified as maintaining a Quality Assurance System in accordance with the Pressure Equipment Directive 97/23/EC (PED) Annex I, Paragraph 4.3 by the Certification Body 0036 of the TÜV Industrie Service GmbH.

Parts and Accessories for the Full View Sanitary
