Model L Safesite Sight Flow Indicator

Model L Safesite Sight Flow Indicator
jQuery Slider
Photo Gallery
View Model L Safesite Photos
Model L Safesite Photos
View Engineering Information

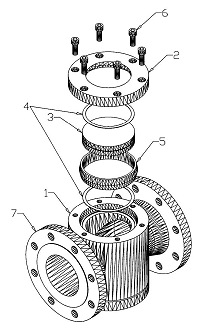

CAD Drawing

Click for larger view
Product Details

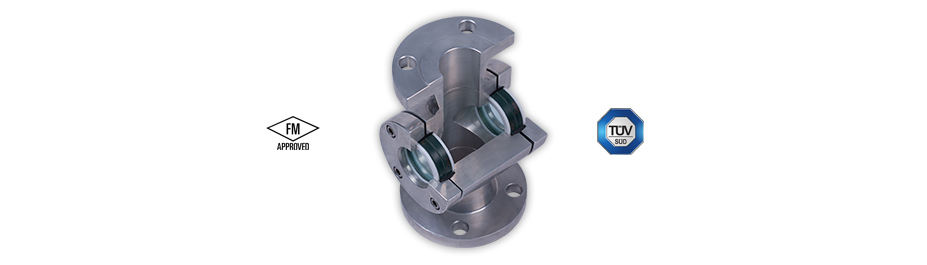

The Model L SafeSite is an inline (see-thru) type of sight flow indicator assembly that allows the observation of material flow through a line. The unit is essentially two Model L Weld sight glasses mounted at 180 degrees from one another on a specialized pipe fitting.

The Model L Safesite is developed to satisfy the need for pressure requirements from full vacuum to 150 psi while still providing the safety of PresSure Products higher-pressure units. This unit employs standard 150 psi ANSI B16.5 (2" to 8") flange ends to specified face-to-face dimensions. Model L Safesites can be supplied with indicators such as drip tubes, rotors or flappers, and rated for temperatures up to 450°F. The unit can be provided with Silicone, Viton®, Teflon® or EPDM seals. Various materials of construction are available to meet your process needs. Available connection types include stub-ends with lap joint flanges, butt-welds, threaded or sanitary. Units can be adapted to meet smaller or larger-size flange connections if necessary. Units rated for 100 PSIG feature laminated double layer lens, while 150 PSIG units feature thicker single piece lens.

Body: 316 or 304 Stainless Steel SA-351; Carbon Steel SA- 519; Hastelloy; Alloy 20; Titanium; Aluminum; etc.
Retainer Caps: 316 or 304 Stainless Steel SA-351; Carbon Steel SA 519
Flanges: 316 or 304 Stainless Steel SA-182; Carbon Steel SA-105; Hastelloy; Alloy 20; Titanium; Aluminum; etc.
Lens: Two-Piece Laminated Tempered Soda Lime (Standard); Tempered or Annealed Borosilicate; Quartz; Lexan; Acrylic
Lens Cushion Gaskets: Teflon®; Grafoil®; Gylon®; Blue-Gard®; etc.
Seals: Teflon®; Viton®; Silicone; EPDM
Retainer Cap Bolts: 18-8 Stainless Steel; Carbon Steel SA-193*

*By request only

This sight glass has been certified as maintaining a Quality Assurance System in accordance with the Pressure Equipment Directive 97/23/EC (PED) Annex I, Paragraph 4.3 by the Certification Body 0036 of the TÜV Industrie Service GmbH.
